東莞張力測控技術有限公司
Dongguan Tension Measurement andControl Technology Co., Ltd 展位號：2296 展出產品：磁滯測功機測試系統、 伺服電機加載測試系統、電機壽命測試系統等 聯系方式：0769-82730118 網址：www.zlmeasure.com 郵箱：Sales@zlmeasure.com/ Bruce.wang@zlmeasure.com
公司簡介
東莞張力測控技術有限公司位于交通便利環境優美的松山湖高新技術產業園，是一家從原有東莞張力機電有限公司剝離出來專注于電機智能測試設備及自動化檢測產品的設計研發、生產及銷售的高新技術企業，公司致力于向客戶提供定制化的一站式電機測試解決方案。 公司主要產品有磁滯測功機，磁粉測功機，電渦流測功機及其控制系統，電機綜合性能測試系統，電機在線性能測試系統，電機壽命測試系統，電動工具壽命測試系統，小型汽油機在線測試系統，新能源汽車主軸電機綜合性能測試系統，發電機負載測試系統等，產品廣泛應用于汽車，航空、家用電器、電動工具及園林護理設備等行業。 我們堅持“立品牌之本，唯客戶至上”的經營方針，使我們的產品得到客戶的高度認可。
Dongguan Tension Measurement and Control Technology Co., Ltd. is located in Songshan Lake New Technology Industry Park. It is a high-tech enterprise which is dedicated to the design, development, production and sale of motor intelligent testing equipment and auto-matic testing products. Our main products are hysteresis dynamometer, magnetic powder dynamometer, eddy current dynamometer and its control system, motor integrated performance test system, motor online performance test system, motor life test system, electric toll life test system, small gasoline engine online test system, new energy automobile spindle motor integrated perfor-mance test system, generator load test system, etc. Aviation, home appliances, electric power tools, and garden care equipment and other industries. We adhere to the “brand first, customer first” business policy, which makes our products are highly recognized by customers.
部分展品

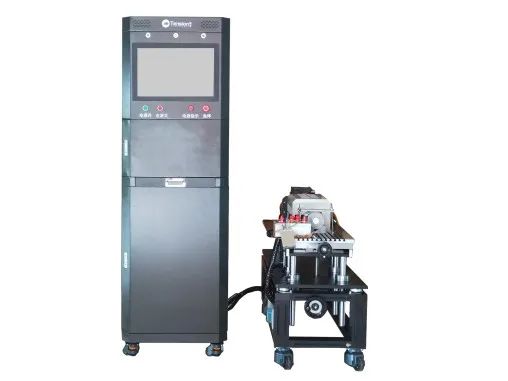

1、磁滯測功機測試系統
產品介紹
磁滯測功機系統是基于磁滯測功機，加載控制器，電參數儀等外圍測試設備，通過LabVIEW編譯的軟件控制實現對電機性能的綜合測試。 可以計算并顯示多個參數（扭矩，轉速，輸出功率，電壓，電流，輸入功率，效率，轉向等），能夠進行扭矩轉速開閉環控制及根據客戶要求訂制。
Hysteresis dynamometer test system is being developed base upon the hysteresis dyna-mometer, loading controller and power meter and so on, the software control compiled by LabVIEW realizes the comprehensive test of motor performance. It can calculate and display multiple parameters (torque, speed, output-power, voltage, current, input- power, efficiency, direction, etc.). It is capable of open loop/closed loop control on speed or torque, and can be customized upon the request of customer.

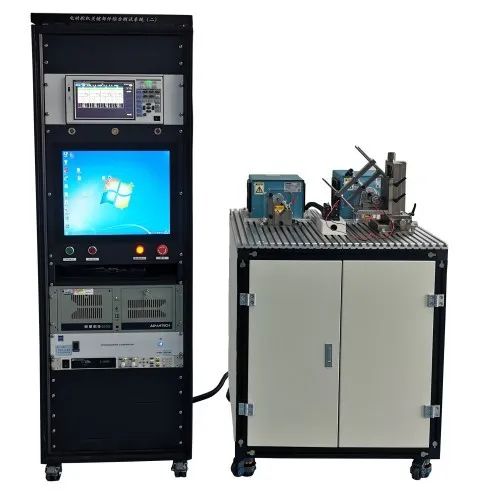

2、伺服電機加載測試系統
產品介紹
該系統配置伺服測功機來進行測試，采用交流變頻回饋加載，加載能量通過交流負載發電機回饋給負載電阻消耗能量；扭矩、轉速通過扭矩傳感器直接測量，功率分析儀檢測電流、電壓、頻率和功率因素等，通過軟件自動過檢測，顯示并完成數據處理和報表曲線。
This system equipped with a servo dyna-mometer for motor loading performance test. Adopts AC frequency conversion feed-back loading, the energy is being consumed by resistors through the loading generator; torque and speed are measured directly by torque sensor, and the power analyzer detect the current, voltage, frequency and PF etc. Then automatically detect, display and complete the data processing and forms, curves through software.

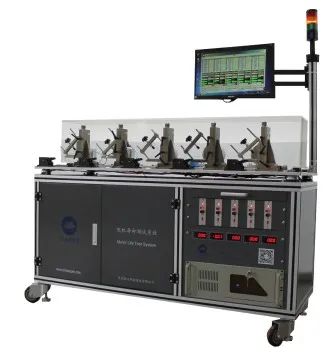

3、電機壽命測試系統
產品介紹
五工位電機壽命測試系統是電機模擬負載耐久測試的專用設備。該系統由磁滯制動器，恒流源，工裝夾具，工控機，聯軸器，控制器，測試臺和測試軟件等組成，五個獨立通道互不干涉，能快速，精準的檢測被測電機的電流，溫度等參數。
Five-station motor life test system is a cus-tomized system for motor durability test by applying simulation load. The system consists of hysteresis brake, constant current source, fixture, IPC, coupling, controller, test bench, test software and other components. Five independent station can quickly and accurately test the motor current, temperature and other parameters without interference. |
